Pressure/force

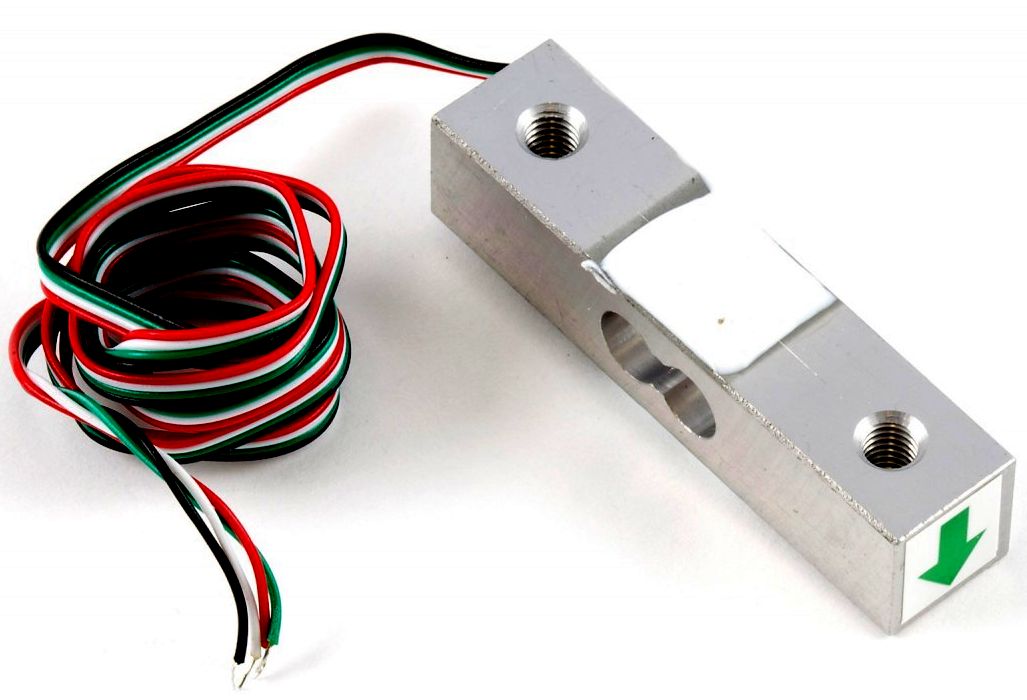

Micro Load Cell (0-5kg) - CZL635

• Sensor Type: Shear Load Cell
• Weight Capacity Max: 5 kg
• Maximum Overload: 6 kg
• Creep: 5 g/hr
• Zero Balance: ± 75 g
• Cell Repeatability Error Max: ± 2.5 mg
• Cell Non-Linearity Max: 2.5 mg
• Cell Hysteresis Max: 2.5 mg
• Temperature Effect on Span: 250 mg/°C
• Temperature Effect on Zero: 500 mg/°C
• Material: Aluminium Alloy

connections:
Red 5V
Green +
White -
Black GND

Load cell primer

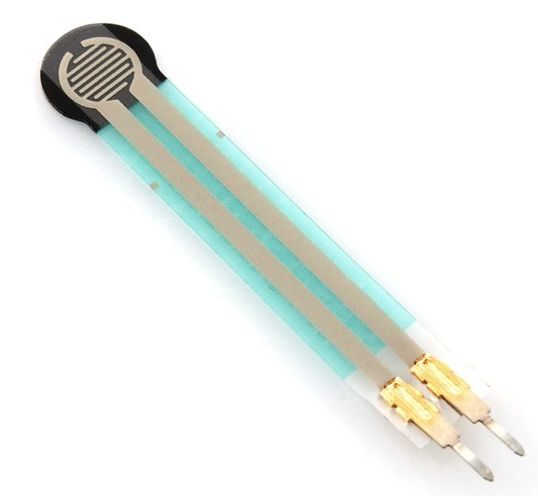

Force sensing resistor 0.2“ FSR 400


FSRguide

Flexiforce A201-100

Flexiforce manual
