Transceiver NRF24L01

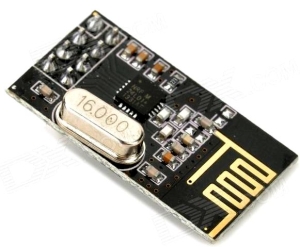

Module for wireless communication: NRF24L01+ (transmitter/receiver 1 pcb)
open surrounding 100 meter range.
1: interface: 4 wire SPI
2: on 2Mbit/s speed max input current for receiving: 12.5mA
3: on 2Mbit/s speed @ 0dBm max input current for transmit: 11mA
4: current use in power-down mode: 400nA
5: current use in stand-by mode: 32uA
6: from stand-by to power up: 130us
7: with on-chip voltage regulator
8: working voltage: 1,9 - 3,6 V
9: 5V tolerant input
10: MultiCeiverMT hardware to receive 6 streams of 2Mbit/s with high quality

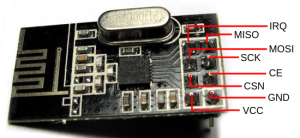

connections:
1: GND
2: VCC
3: CE
4: CSN
5: SCK
6: MOSI
7: MISO
8: IRQ
