Air pressure sensor

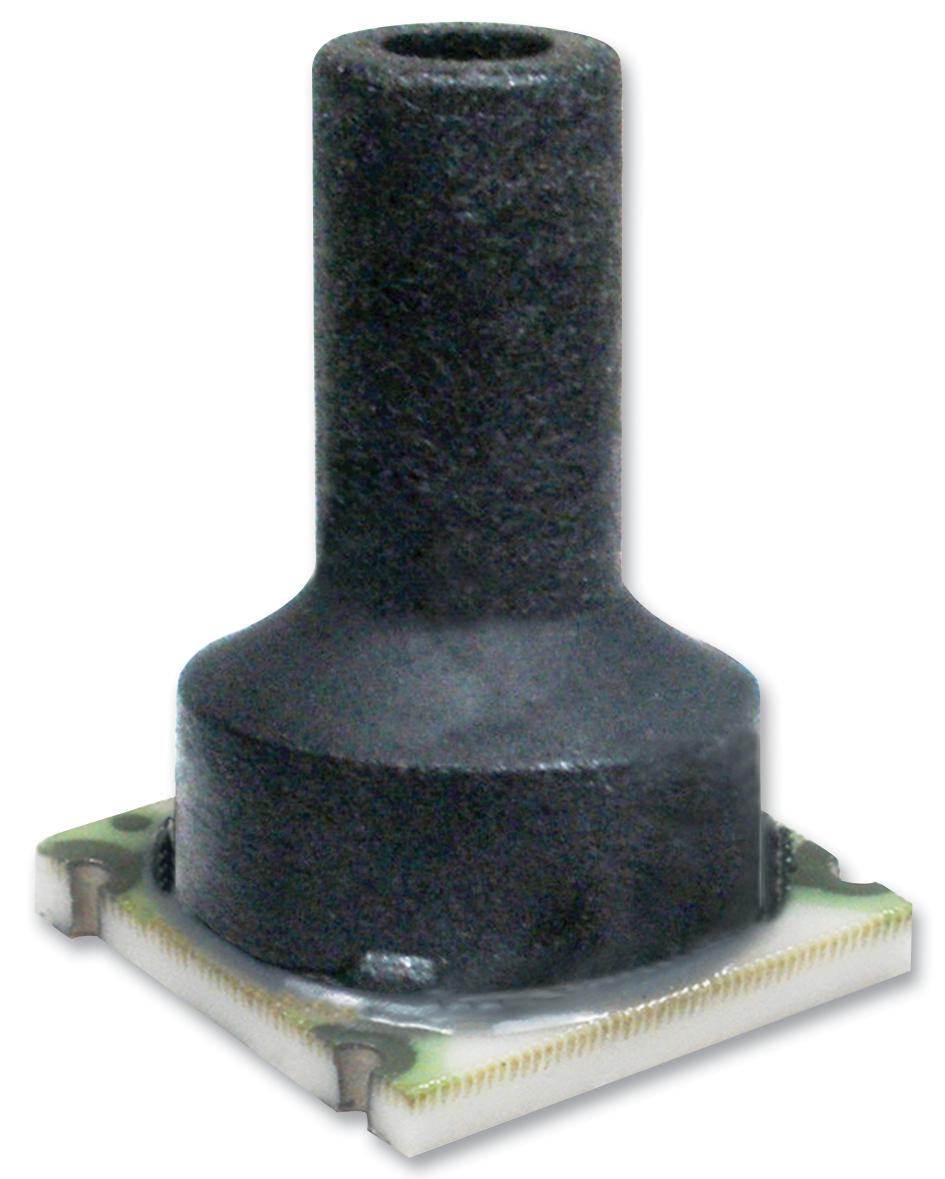

Honeywell TBPLLNS001PGUCV Farnell 2420204

Operating Pressure Max 1psi
Pressure Measurement Type Gauge
Port Style : wired
Sensor Output Analogue
Voltage Rating 5VDC
Supply Current 600µA

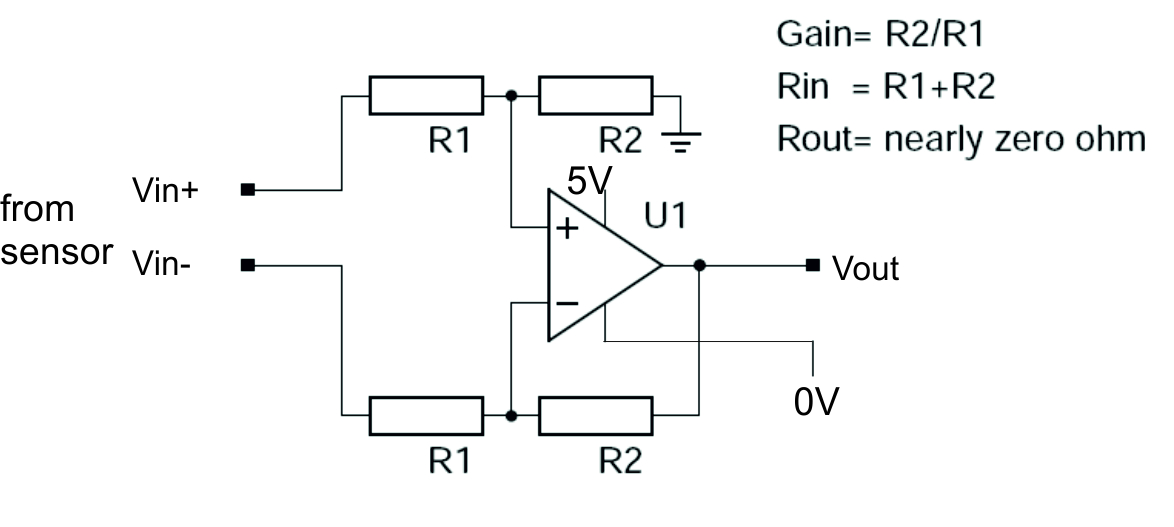

The output of this sensor can be amplified with a TLC272CP opamp used as a differential amplifier

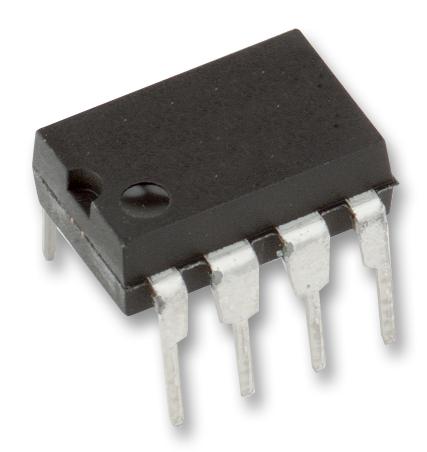

The TLC272CP is a 5V single supply opamp.

TLC272 manual
